Is Anodising the Best Finish for Precision Aluminum Parts?

Anodising is often used when a machined aluminum surface needs corrosion resistance, better wear behavior, and stable color, without covering the metal with a thick paint film. If you are checking finish options for CNC parts, cast housings, heat sinks, brackets, or consumer hardware, Jieerda’s Processes page helps link anodising with machining, tolerance planning, and inspection work.

The problem is that anodising is not only “make it black” or “make it silver.” Thickness, alloy, sealing, masking, and surface texture all affect the finished part. A prototype can look fine and still cause trouble if a threaded bore becomes tight, the color moves from the approved sample, or the wrong coating type is used on a sliding face. The points below are the ones I would put into drawings and purchase orders before parts move out of the machine shop.

What Is Anodising and Why Does Aluminum Use It?

Anodising is an electrochemical conversion process. The aluminum part works as the anode in an acid electrolyte, and the surface is changed into aluminum oxide. It is not the same as paint sitting on top of the part, because the oxide grows from the base metal. That is why the part can still look like aluminum while gaining useful surface protection.

An Electrochemical Surface Conversion

The process turns the outer aluminum into a controlled oxide layer. ISO 7599:2018, published in January 2018 and confirmed in 2023, explains how decorative and protective anodic oxidation coatings on aluminum should be specified, including properties, test methods, and minimum performance requirements. This helps in export work because buyers in the United States, Europe, or Asia can use the same coating wording and discuss the same test purpose. (iso.org)

A Porous Oxide Layer That Can Be Sealed

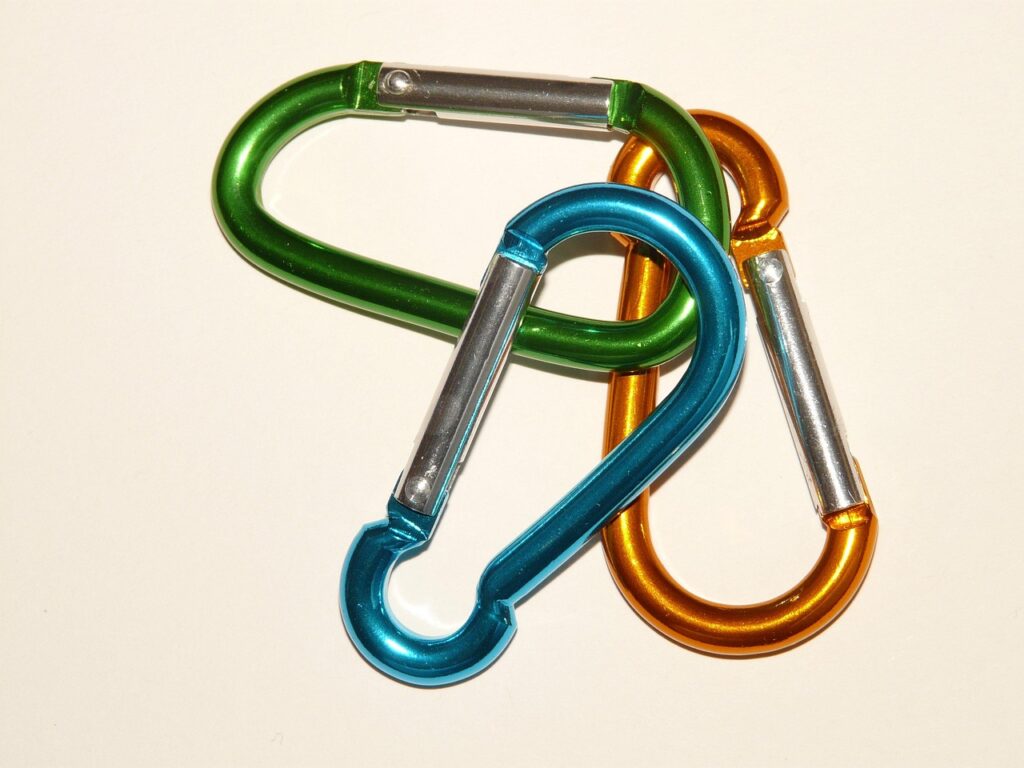

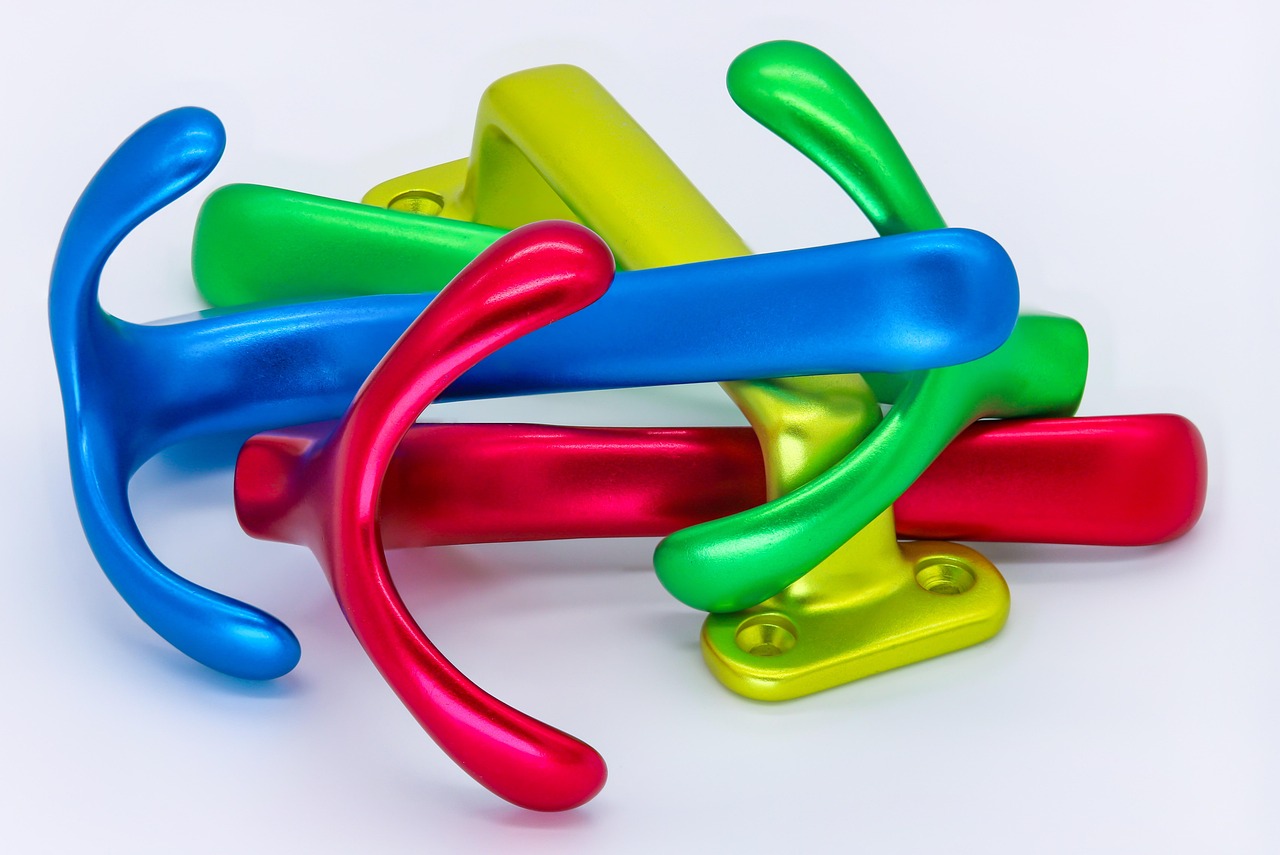

Fresh anodic oxide has pores. These pores take dye well, so black, red, blue, champagne, and clear finishes are common. After dyeing, sealing closes or hydrates the pore structure, which makes it harder for dirt, salts, and moisture to enter the surface. On parts that people touch every day, such as knobs or camera accessories, weak sealing often shows as stains near edges and fingerprint marks.

A Finish That Keeps the Metal Look

Anodising keeps the aluminum look and the part geometry better than paint in many cases. Brushed, bead-blasted, or CNC-cut surfaces will still show their base texture after finishing. This can help visible parts look more refined, especially on consumer or instrument components. It also means machining marks, dents, tool chatter, and uneven blasting will still be there after the tank process.

Which Anodising Type Should You Choose?

The right anodising type depends on how the part is used. A decorative panel, a drone frame, and a hydraulic valve component do not need the same surface. In many export machining projects, the first decision is between Type II sulfuric anodising and Type III hardcoat anodising.

Type II for General Protection and Color

Type II sulfuric anodising is the normal choice for many machined aluminum parts. It gives useful corrosion resistance, takes dye well, and fits products where appearance matters. Common parts include instrument housings, handles, brackets, electronics enclosures, and consumer product parts. It is usually the safer option when the buyer wants a clean black or clear finish without a thick coating.

Type III Hardcoat for Wear Resistance

Type III hardcoat is used when the surface has sliding, rubbing, or repeated contact. Defense Logistics Agency ASSIST lists MIL-PRF-8625F as a specification for anodic coatings on aluminum and aluminum alloys for non-architectural applications, with coating types that include Type II sulfuric acid anodising and Type III hard anodic coatings. Public ASTM B580 information also notes that hard coatings may range from 12 microns to more than 100 microns, so the thickness should be written clearly instead of guessed. (quicksearch.dla.mil)

Class 1 and Class 2 for Color Control

In MIL-style wording, Class 1 usually means undyed, and Class 2 means dyed. That short line on a drawing can save many emails later. “Type II, Class 2, black” does not mean the same thing as “clear anodise.” If color matters, send a physical sample or a limit sample. A Pantone number can help people talk about the target, but anodised color still depends on alloy, coating thickness, sealing, surface roughness, and lighting. A slight green-gray shift on 7075 aluminum, for example, is not unusual.

How Does Anodising Affect Precision Machined Parts?

Anodising changes dimensions. The change is small, but it can matter on precision bores, sliding fits, threads, and sealing grooves. A supplier may machine good parts and still have fit problems if finishing allowance was not planned in the model or drawing.

Coating Growth into and out of the Surface

The anodic layer grows partly into the aluminum and partly outward from the original surface. The Aluminum Anodizers Council gives a useful Type II rule of thumb: under nominal Type II conditions, about two-thirds of the coating thickness consumes aluminum and about one-third grows outward. For example, a 0.6 mil coating would consume about 0.4 mil of aluminum. This does not replace supplier data, but it helps designers think before fixing a ±0.01 mm bore tolerance. (members.anodizing.org)

Thread Fits, Bores, and Masked Areas

Small internal threads can become tight after anodising. Precision holes may need masking, post-finish reaming, or a larger pre-finish size. With hardcoat, this is more important because the coating is thicker and harder. A simple working method is to write “mask threads” or “no coating in bore” on the drawing, instead of leaving it only in an email that someone may miss.

Alloy Choice Changes the Final Look

6061 usually anodises more evenly than many high-copper or die-cast alloys. 7075 can become darker or slightly olive in clear hardcoat. Cast aluminum may show blotches because silicon-rich areas do not react the same way as the rest of the part. If the project has a visible cosmetic face, ask for test coupons from the same material batch and the same surface preparation. It may feel slow at the start, but it is quicker than sorting 2,000 parts with two different black tones.

What Data Should You Put on Drawings and RFQs?

A clear request saves time and cost. “Black anodising” is not a full specification. Your RFQ should tell the supplier which surface matters, what thickness range is allowed, whether sealing is required, and how the finish will be checked. Many good projects get messy at this point, often right before shipment.

Coating Thickness in Microns or Mils

State coating thickness in microns or mils, and say whether it applies to all surfaces or only significant surfaces. Architectural references often use different class wording; for example, FGIA has released AAMA 611-26 for anodized architectural aluminum, while machined industrial parts more often point to MIL-PRF-8625F, ISO 7599, ASTM methods, or customer standards. The simple rule is to use the standard your industry expects, then add the thickness range your part actually needs. (fgiaonline.org)

Sealing, Dye, and Test Requirements

For dyed Type II parts, sealing is normally expected unless the drawing says otherwise. You can also ask for coating thickness checks, seal quality checks, adhesion-related checks for later printing, or corrosion testing when the end use needs it. Do not ask for every test on a low-risk bracket. Extra testing adds cost and lead time, so use it where it answers a real risk. See also: Machines.

Acceptance Samples for Color and Gloss

Color is often the part of anodising that creates the most arguments. A supplier can meet thickness and sealing requirements but still deliver a tone that your sales team does not accept. The cleaner way is to approve a limit sample, define the viewing light, and mark cosmetic faces. For bead-blasted consumer parts, also control blast media and surface roughness before anodising. The anodising tank cannot fix random preparation work.

When Is Anodising Better than Plating or Painting?

Anodising is not the best answer for every part, but it fits aluminum well. It is thin, bonded to the surface, and good for many visible parts. Paint gives more color freedom. Plating can add conductivity or special wear properties. The finish choice should start with function, then move to cost and appearance.

Lower Risk of Peeling on Aluminum

Because anodising converts the aluminum surface, it does not peel like a weak paint film. This helps on edges, pockets, and parts that are handled often. Sharp corners are still weak points, so add a small radius where the design allows it. Even a small radius can help the coating behave better and make the part feel better in the hand.

Good Outdoor Service When Specified Correctly

Outdoor parts need enough coating thickness and proper sealing. A thin decorative coating may work for an indoor audio knob, but it is not a good choice for marine spray or a rooftop bracket. If the part will see salt, UV, cleaning chemicals, or road grime, tell the supplier clearly. “Outdoor use in Florida” gives more useful information than only saying “good corrosion resistance.”

Limits with Conductivity and Sharp Edges

Anodic oxide is electrically insulating. That is helpful in some applications and a problem in others. Grounding points, EMI contact areas, threaded electrical connections, and press-fit contact surfaces may need masking or machining after finishing. Sharp edges can also burn, become thin, or look lighter, especially with color. A part meant for anodising should be designed with the finish in mind before machining is finished.

How Can You Get Better Results from a Supplier?

Good anodising comes from a chain of small controls. Material, machining coolant, deburring, cleaning, racking, current density, bath condition, dye, seal, inspection, and packaging all affect the result. A supplier does not need vague wording. They need clear requirements and parts that are ready for finishing.

Clean Machining Before Finishing

Oil trapped in blind holes, polishing compound left in corners, and abrasive dust from blasting can stain the finish. Ask how parts should be cleaned before they are sent to the anodiser. For volume work, add drain holes or avoid deep blind pockets where fluid can stay inside. This is a plain detail, but it prevents expensive rework.

Packaging That Protects Edges

Anodised surfaces are hard, but they can still be scratched. Black parts show handling marks more clearly than clear parts. Use soft separators, stop metal-to-metal rubbing, and protect sharp edges. If parts are exported by sea freight, packaging should also reduce moisture exposure during the long trip.

Inspection Records You Can Actually Use

Ask for records that match the order risk. For simple cosmetic parts, photos and sample approval may be enough. For precision or safety-related parts, request coating thickness readings, masked-area confirmation, and a packing inspection. Keep the report short and easy to read. A clear one-page record is often more useful than a large file that nobody opens.

FAQ

Q1: Is anodising suitable for all aluminum alloys? A: No. Many wrought alloys anodise well, especially 6061, but high-copper alloys and cast aluminum can show darker color, blotches, or less even appearance. Test samples are a good idea for cosmetic work.

Q2: Does anodising make aluminum parts bigger? A: Yes, partly. The coating grows into and out of the surface. For tight bores, threads, and sliding fits, add allowance or specify masking before production.

Q3: Is Type III hardcoat always better than Type II? A: Not always. Type III gives better wear resistance, but it is thicker, has less color flexibility, and can affect fit more easily. Type II is often better for clean decorative parts.

Q4: Can anodising match an exact brand color? A: It can get close, but exact color matching is difficult. Alloy, thickness, dye, seal, and surface prep all affect the result. Use approved limit samples for production.

Q5: What should be written on an anodising drawing? A: Include coating type, class or color, thickness range, sealing need, cosmetic surfaces, masking areas, test requirements, and any approved color or texture sample reference.
